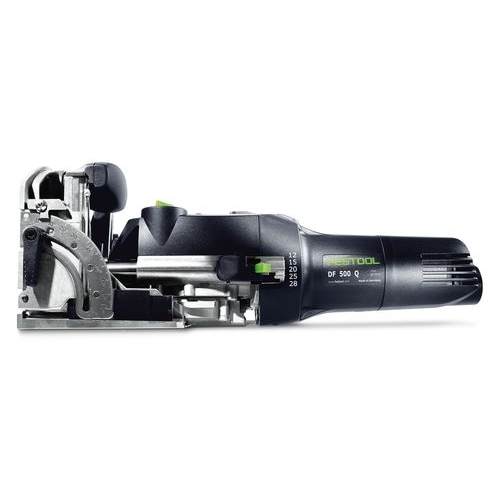

Festool DF 500 Q-PLUS Domino Joining Machine FL 576417 110V
Oval shape, larger glued area, more stability. The DOMINO system unites the precision of around dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.
Features:
- Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm
- Patented routing principle unique to hand-held machines for accurate work with no kickbacks
- Stops that are quick and easy to adjust, for accurate results
- Ergonomic shape for ease of operation in any position
- Rotation-proof joint with DOMINO dowels providing maximum stability
- System accessories compatible with both DOMINO jointers
Specification:
- Power consumption: 420 W
- Idle engine speed: 24300 min-1
- Depth stop for routing depth : 12, 15, 20, 25, 28 mm
- Routing height adjuster with scale: 5-30 mm
- Movable stepped stop : 16, 20, 22, 25, 28, 36, 40 mm
- Mitre routing: 0-90 °
- Connection Ø d/e : 27 mm
- Weight : 3.2 kg
Applications:
- Furniture manufacture
- Shopfitting/Interior fitting
- Window construction
- Exhibition stand construction
- For panel joins
- For frame and rack joints

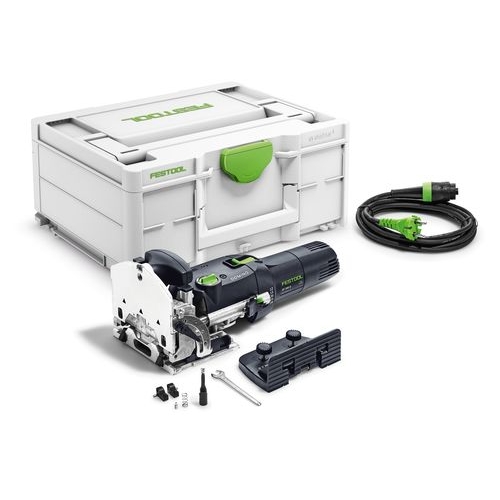

Includes:
- Domino cutter D5
- Additional Stop
- Open ended spanner ,WAF 8
- In SYSTAINER SYS3 M187
FESTOOL 576417 Joining machine DF 500 Q-Plus 110V GB
Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mmPatented routing principle unique to hand-held machines for accurate work with no kickbacksStops that are quick and easy to adjust, for accurate resultsErgonomic shape for ease of operation in any positionRotation-proof joint with DOMINO dowels providing maximum stabilitySystem accessories compatible with both DOMINO jointersOval shape, larger glued area, more stability. The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.
DOMINO cutter D5, Additional stop, open ended spanner, WAF 8, plug it-power cable (4 m), Systainer SYS3 M 187
Product strengths
- Ergonomic shape for ease of operation in any position
- Patented routing principle unique to hand-held machines for accurate work with no kickbacks
- Rotation-proof joint with DOMINO dowels providing maximum stability
- Stops that are quick and easy to adjust, for accurate results
- System accessories compatible with both DOMINO jointers
- Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm
Technical data
Idle engine speed 25 500 min⁻¹
Depth stop for routing depth 12, 15, 20, 25, 28 mm
DOMINO slot cutter dia. 4, 5, 6, 8, 10 mm
Routing height adjustment 5 - 30 mm
Dust extraction connection diameter 27 mm
Routing: Uncertainty (vibration) K 1.5 m/s²
Routing: Uncertainty (noise) K 3 dB
Routing: Total vibration average, Ah 3 m/s²
Routing: Standards series EN 60745-2-19
Routing: A-weighted sound pressure level, LpA 84 dB(A)
Routing: A-weighted sound power level, LWA 95 dB(A)
Product weight without accessories 3.5 kg
Transport weight incl. accessories 6.1 kg
Items included
- Additional stop
- DOMINO cutter D5
- Systainer SYS3 M 187
- open ended spanner, WAF 8
- plug it-power cable (4 m)
Categories / Category assignments
Logistic details
Country of origin Germany
Areas of application
- Exhibition stand construction
- For frame and rack joints
- For panel joins
- Furniture manufacture
- Shopfitting/Interior fitting
- Window construction
