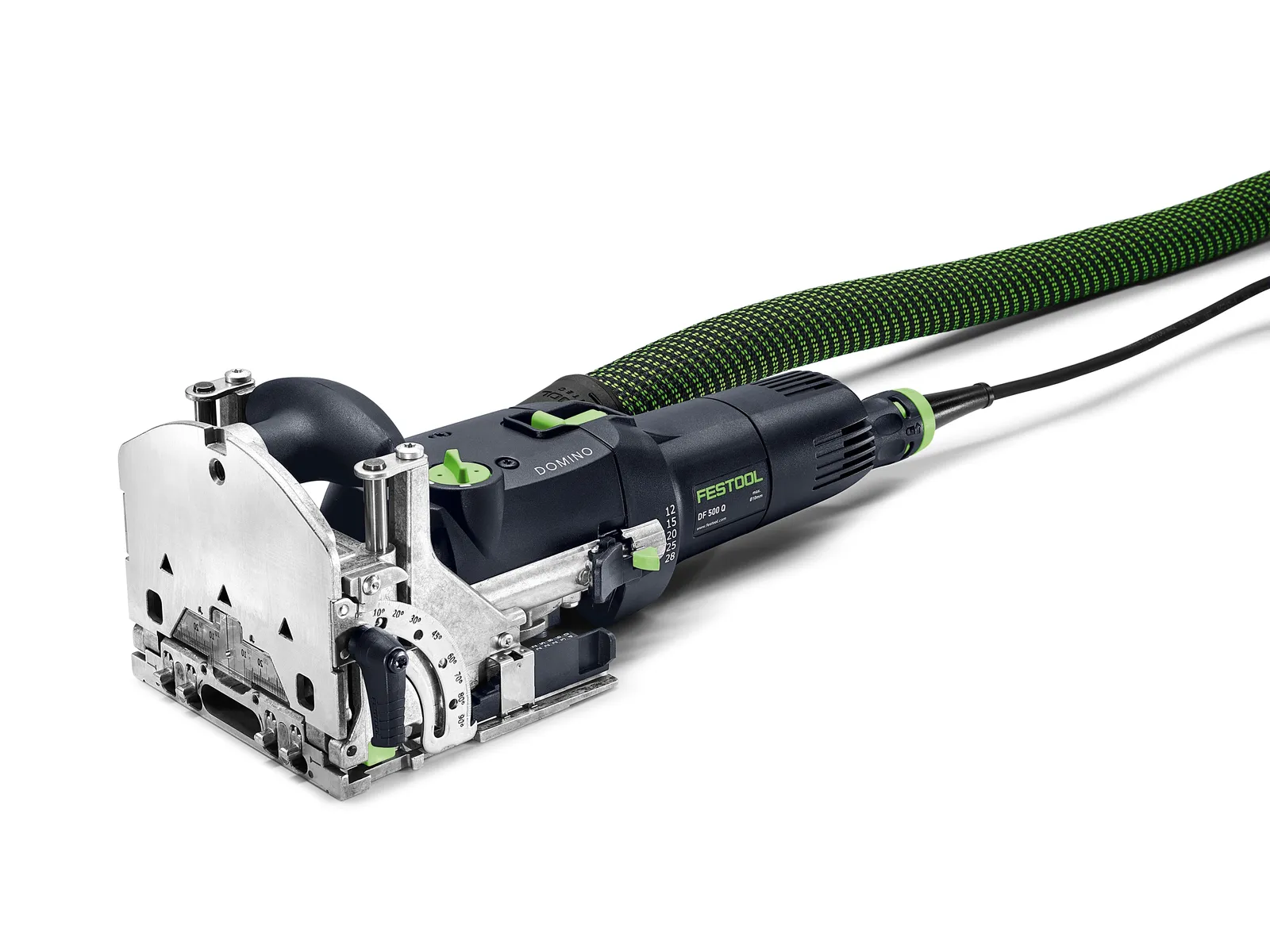

FESTOOL, FL578464, DF 500 RQ-Plus 230V Joining machine

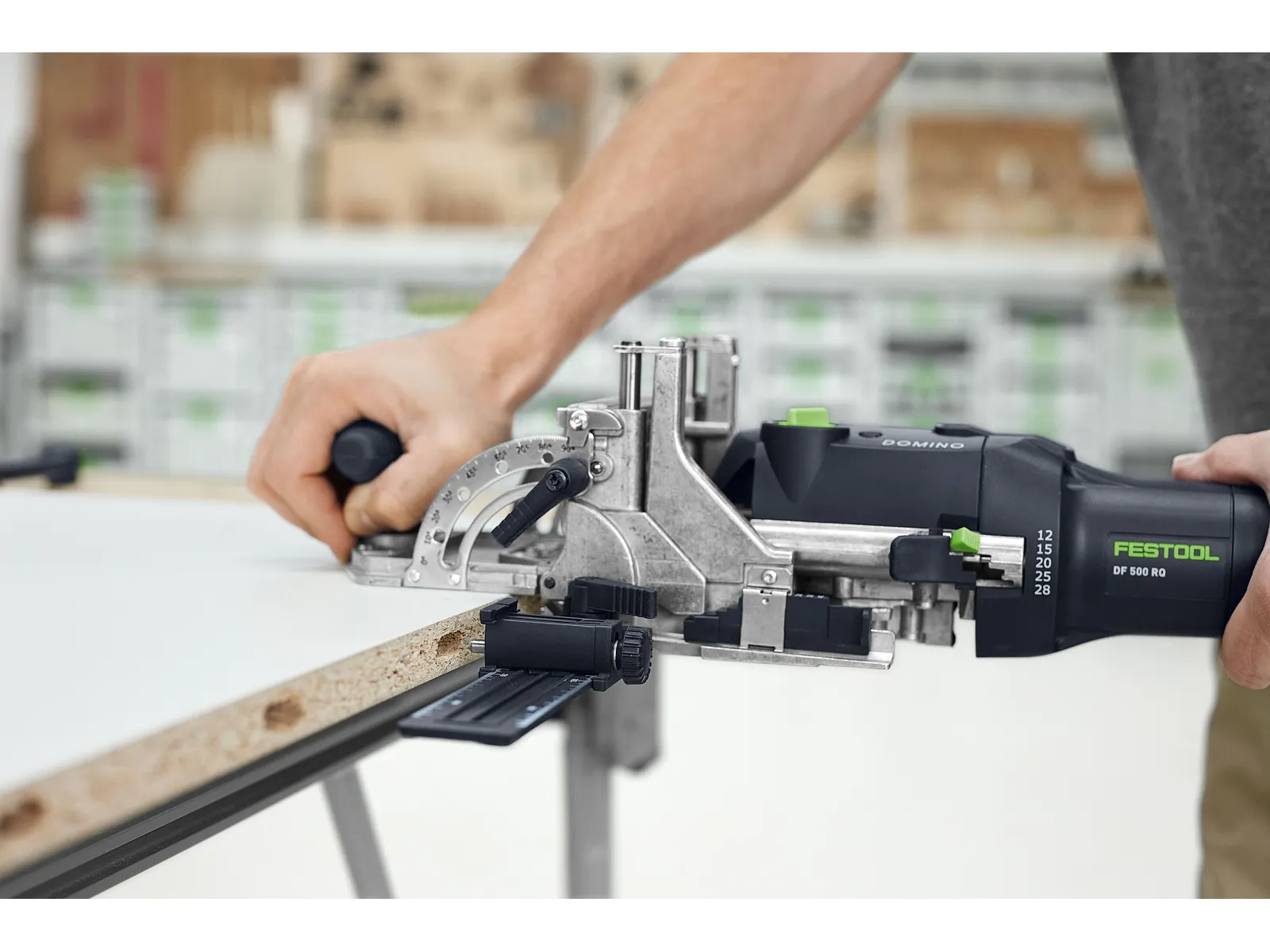

Every wood joint has its perks. The DOMINO jointing system, made up of the joining machine and DOMINO dowels, brings them all together. The unique pendulum routing action of the DOMINO carves out precise, twist-proof elongated holes. The DOMINO dowel combines the strength of slot and mortise joints with the flexibility of flat dowels. Perfect for both delicate and hefty workpieces, whether inside or out.

Functions

Connect with precision, stability and versatility: Simply DOMINO.

Every wood joint has its perks. The DOMINO jointing system, made up of the joining machine and DOMINO dowels, brings them all together. The unique pendulum routing action of the DOMINO carves out precise, twist-proof elongated holes. The DOMINO dowel combines the strength of slot and mortise joints with the flexibility of flat dowels. Perfect for both delicate and hefty workpieces, whether inside or out.

• Precise: One-of-a-kind pendulum milling principle for accurate, effortless work.
• Quick and easy: Built-in stop pins for repeating dowel placement.

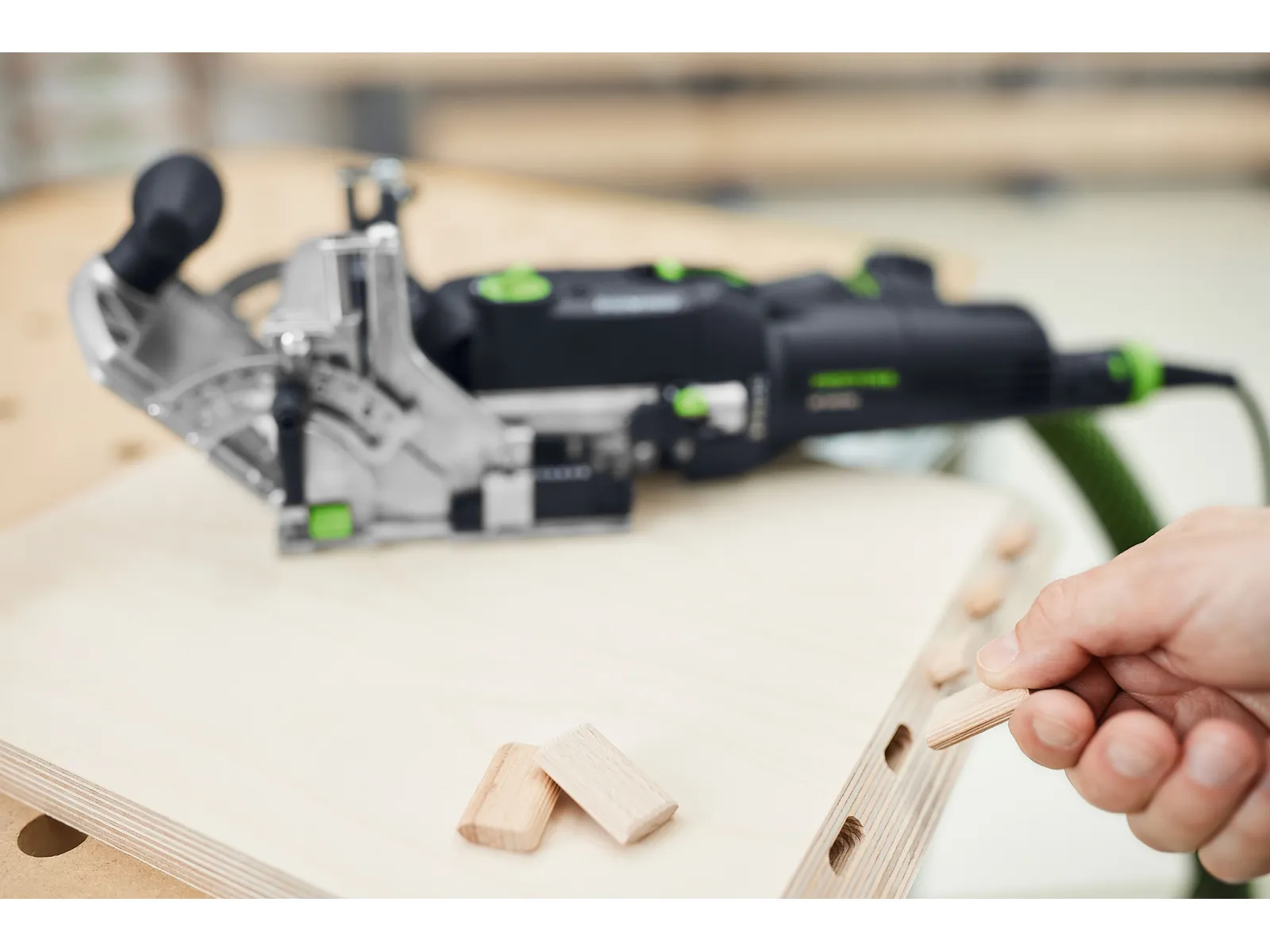

• Stable: Super stable and twist-proof joints thanks to the unique shape of the DOMINO dowel.
• Versatile: DOMINO plugs come in various sizes from 4 x 20 mm to 10 x 50 mm and in two types of wood for indoor and outdoor use.
• Sorted: The routing depths are just right for the dowel lengths and panel materials.
• Flexible: The DOMINO core connectors and furniture fittings let you create sturdy furniture setups that can be taken apart again.
• System: Accessories are a perfect fit for the whole DOMINO system.

Performance features

Antistatic function

Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.

CLEANTEC

Integrated bayonet fitting as the connecting element between the extractor and the tool.

Plug it

Removable, replaceable mains cable with safety lock for quick conversion.

FastFix

Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.

Main applications

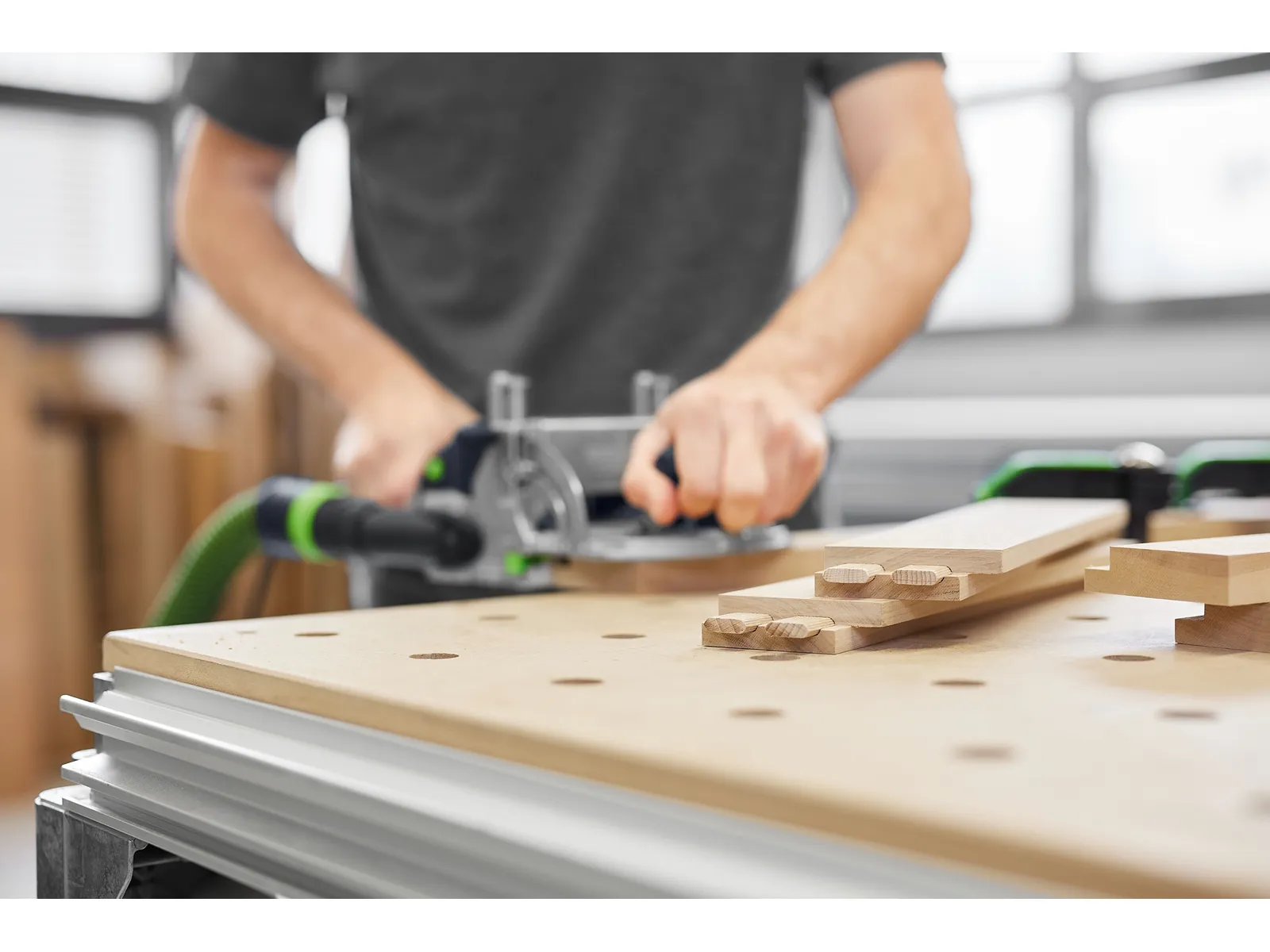

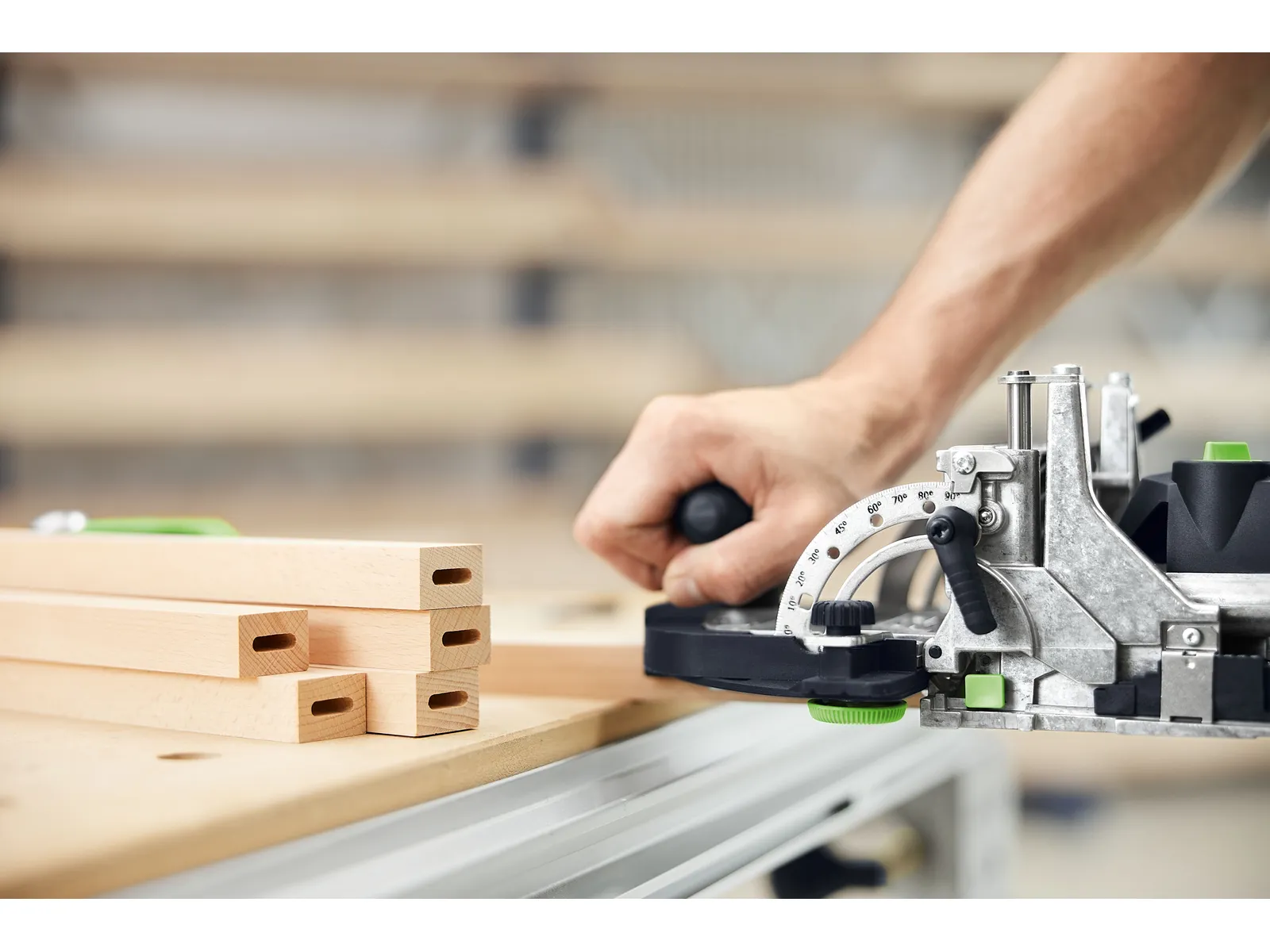

• Frames and frame joints in solid wood

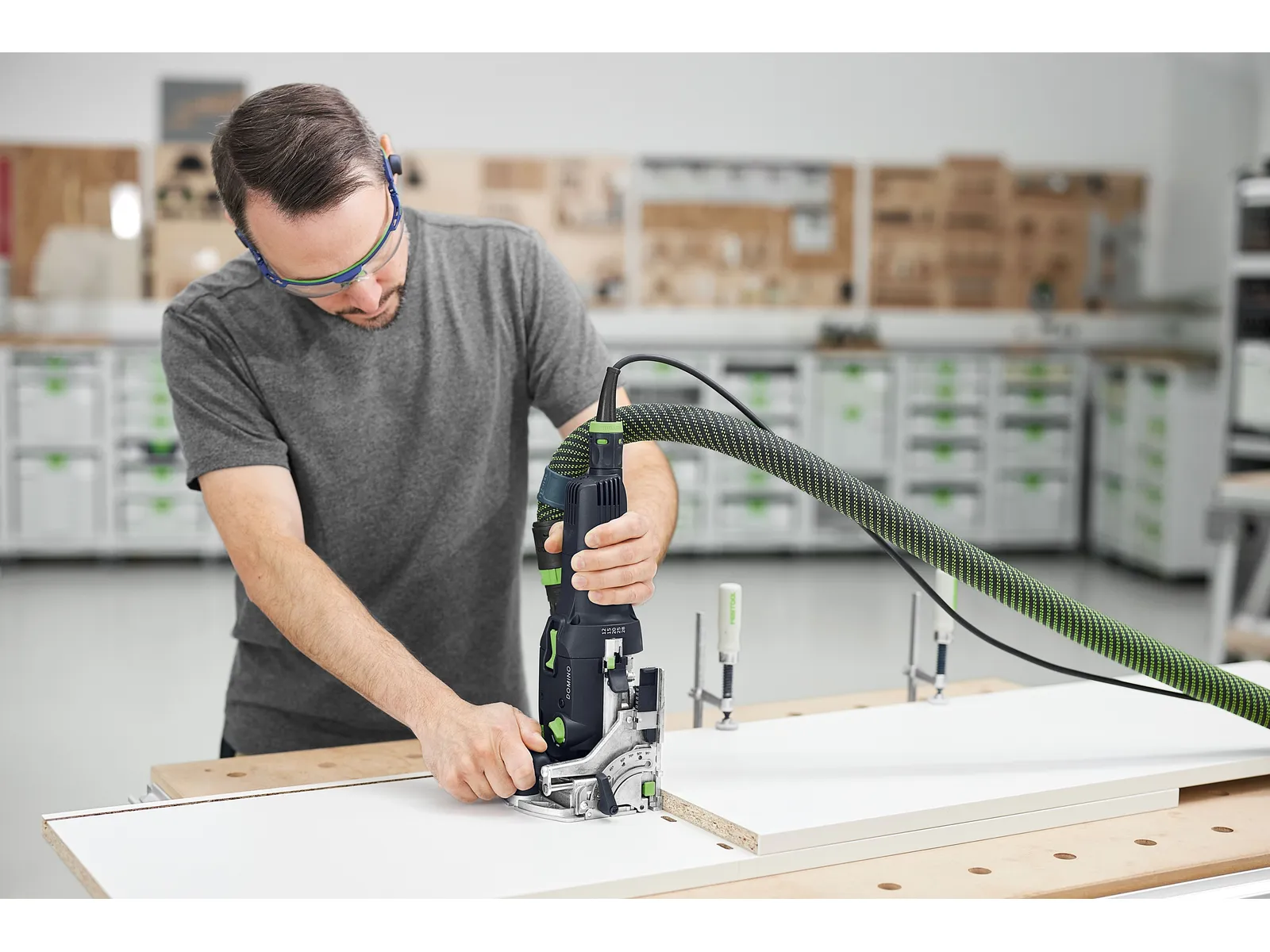

• Panel joints in various types of panel materials
• Twist-proof connections, even with small cross sections
• Creation of stable mitre joints
• Easy-to-remove corner connectors with the DOMINO connectors
• Joining thin bits from 12 mm up

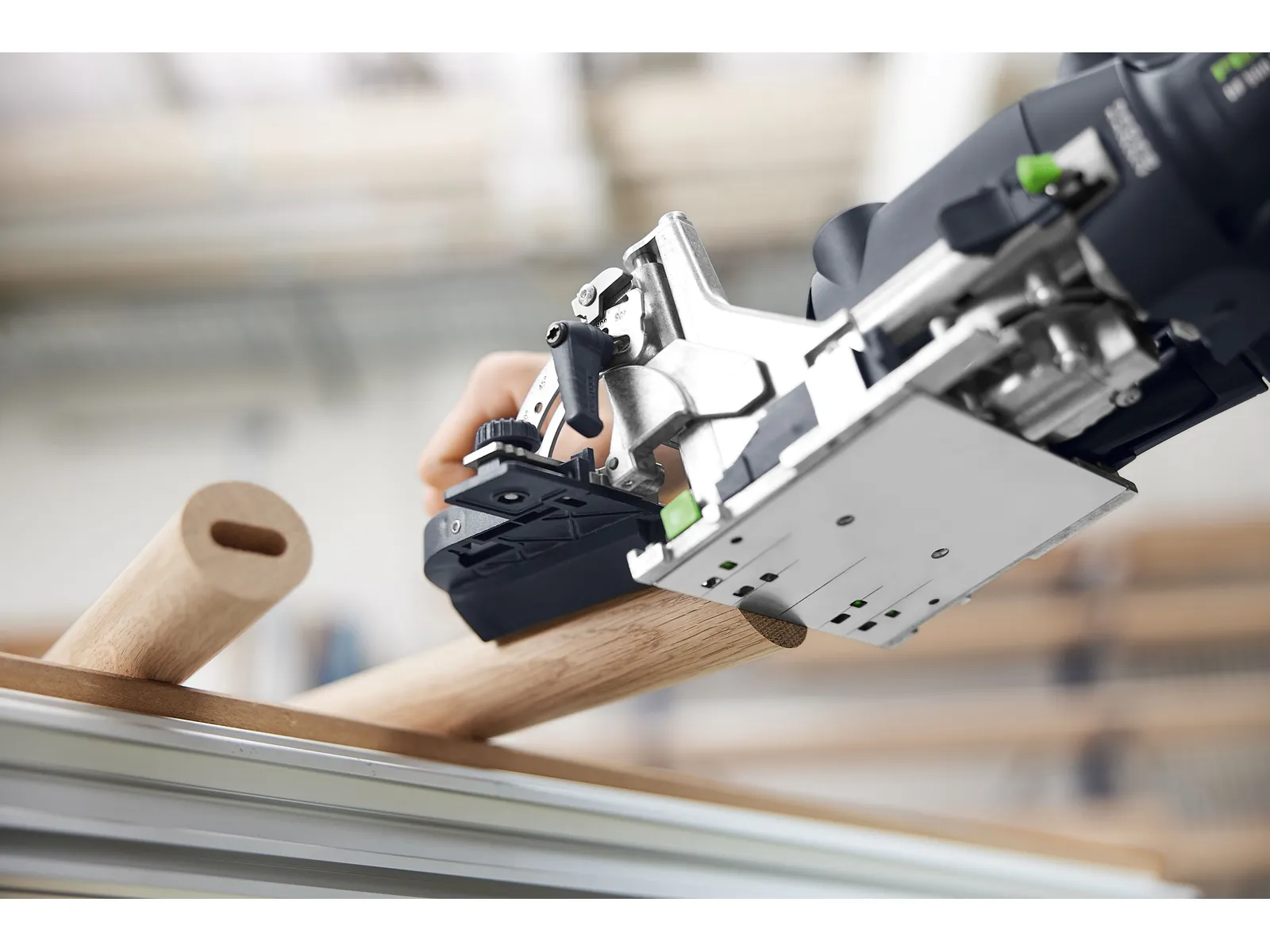

• Round profile connection with the handrail fence

Technical data

Power consumption  420 W

Motor speed    25 500 min⁻¹

Depth stop for routing depth    12, 15, 20, 25, 28 mm

Max. routing depth    28.00 mm

DOMINO groove cutter diameter     4, 5, 6, 8, 10 mm

Routing height adjustment     5 - 30 mm

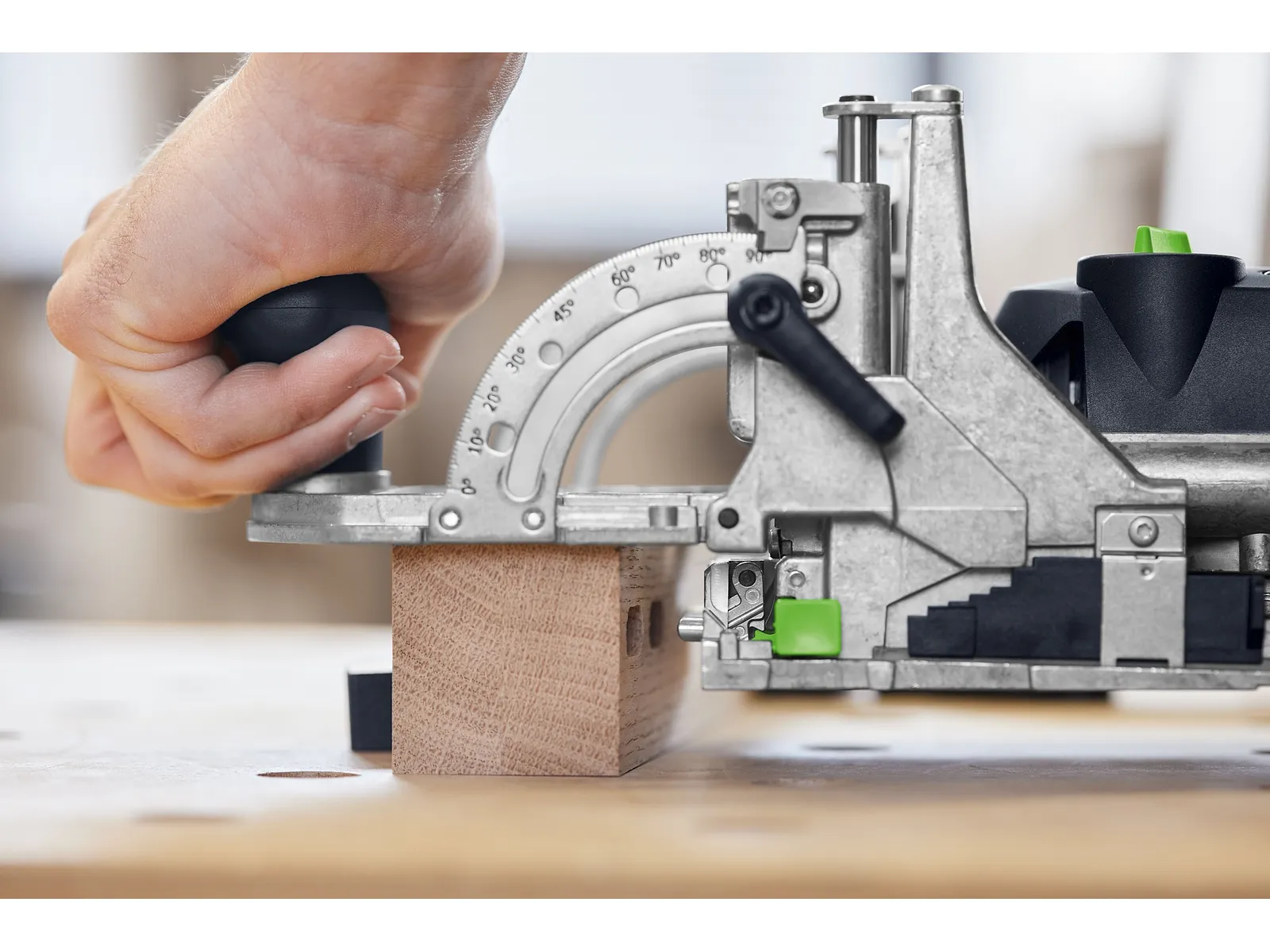

Mitre routing     0 - 90 °

Dust extraction connection diameter     27 mm

Cable length     4.00 m

Drive type     Mains

Product weight without accessories    3.60 kg

Transport weight incl. accessories     6.10 kg

Noise and vibration values

Routing: Uncertainty (vibration) K    1.50 m/s²

Routing: Uncertainty (noise) K    1.50 dB

Routing: Total vibration average, Ah    2.50 m/s²

Routing: Standards series EN     60745-2-19

Routing: A-weighted sound pressure level, LpA     85.00 dB(A)

Routing: A-weighted sound power level, LWA      96.00 dB(A)

EAN    4014549447994
