Original price was: €1,858.00.€1,811.00Current price is: €1,811.00.

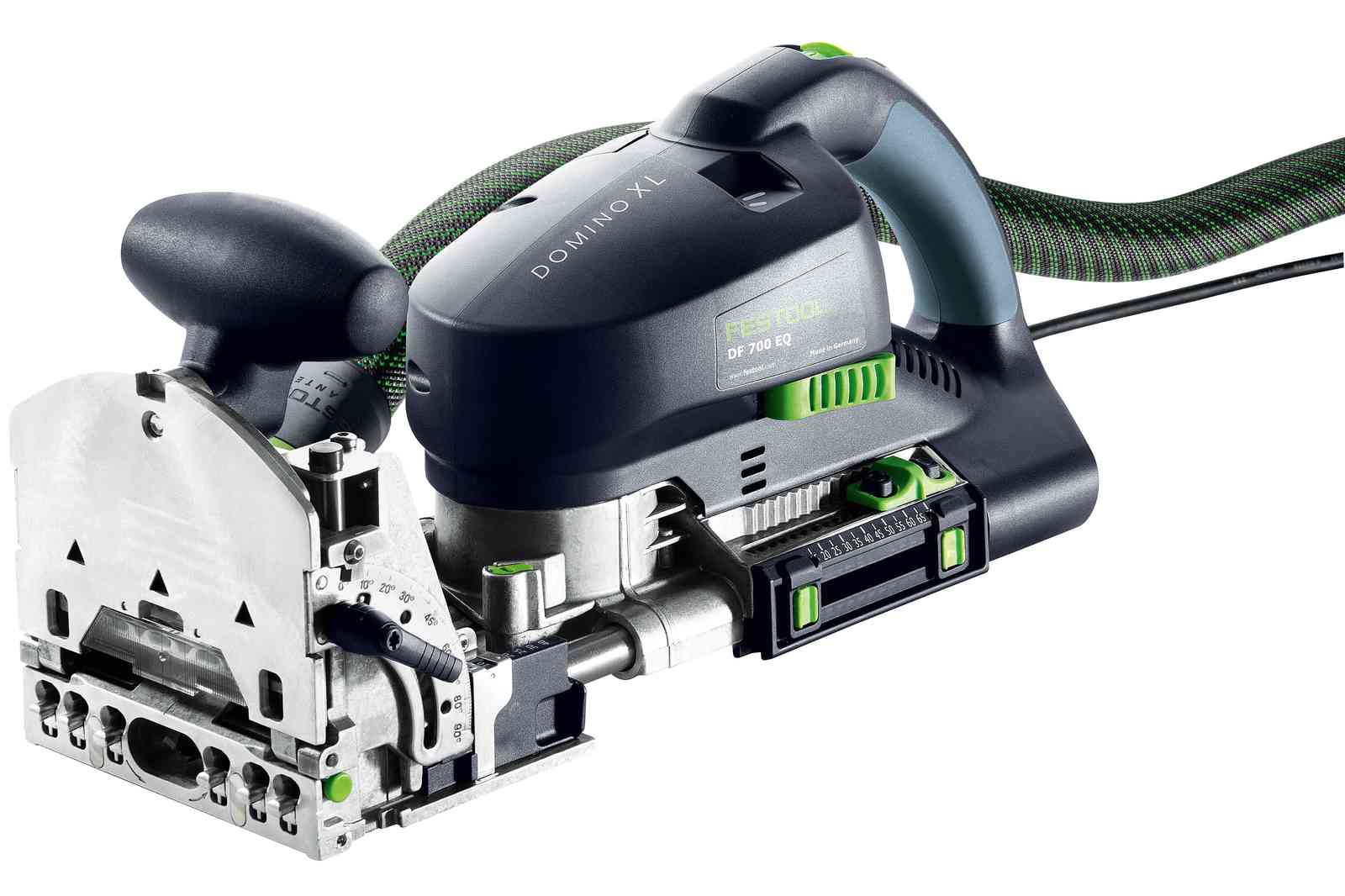

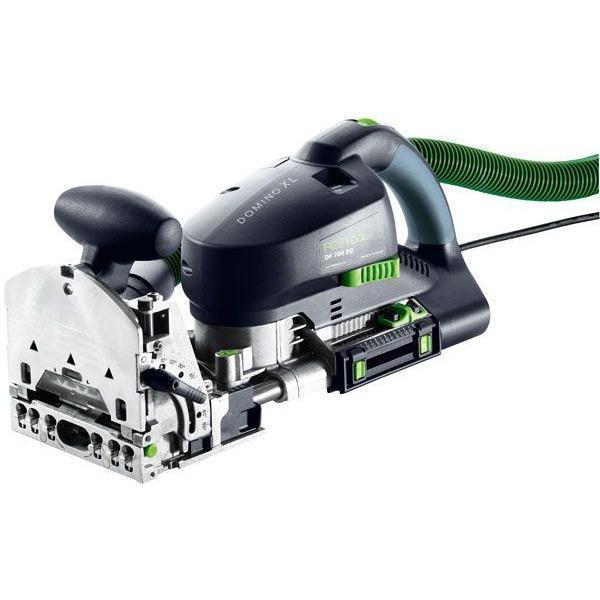

Comes to the workpiece and not vice versa: DOMINO XL. Quick, simple, precise and extremely stable - with measurably shorter tooling times and up to 50% time-saving in comparison to stationary machines. The DOMINO XL is therefore ideally suited for furniture and door construction and solid wood joints.
The DOMINO XL comes to the workpiece – and not vice versa. Quick, precise, extremely stable and thus ideal for furniture and door construction.
Simple marking. Significantly shorter machine set-up times. No intensive and time-consuming material transport. Considerable reduction in time spent cleaning.
Unique to handheld machines: the routing action of the DOMINO Joining machine. The cutter’s simultaneous rotation and swinging motion makes work effortless.
Custom-fit alignment: The first DOMINO is positioned in a precision cut elongated hole, the next DOMINOs are inserted into wider elongated holes with play so that the joint can be aligned effortlessly. The result is a stable joint, protected against rotation from the first DOMINO.

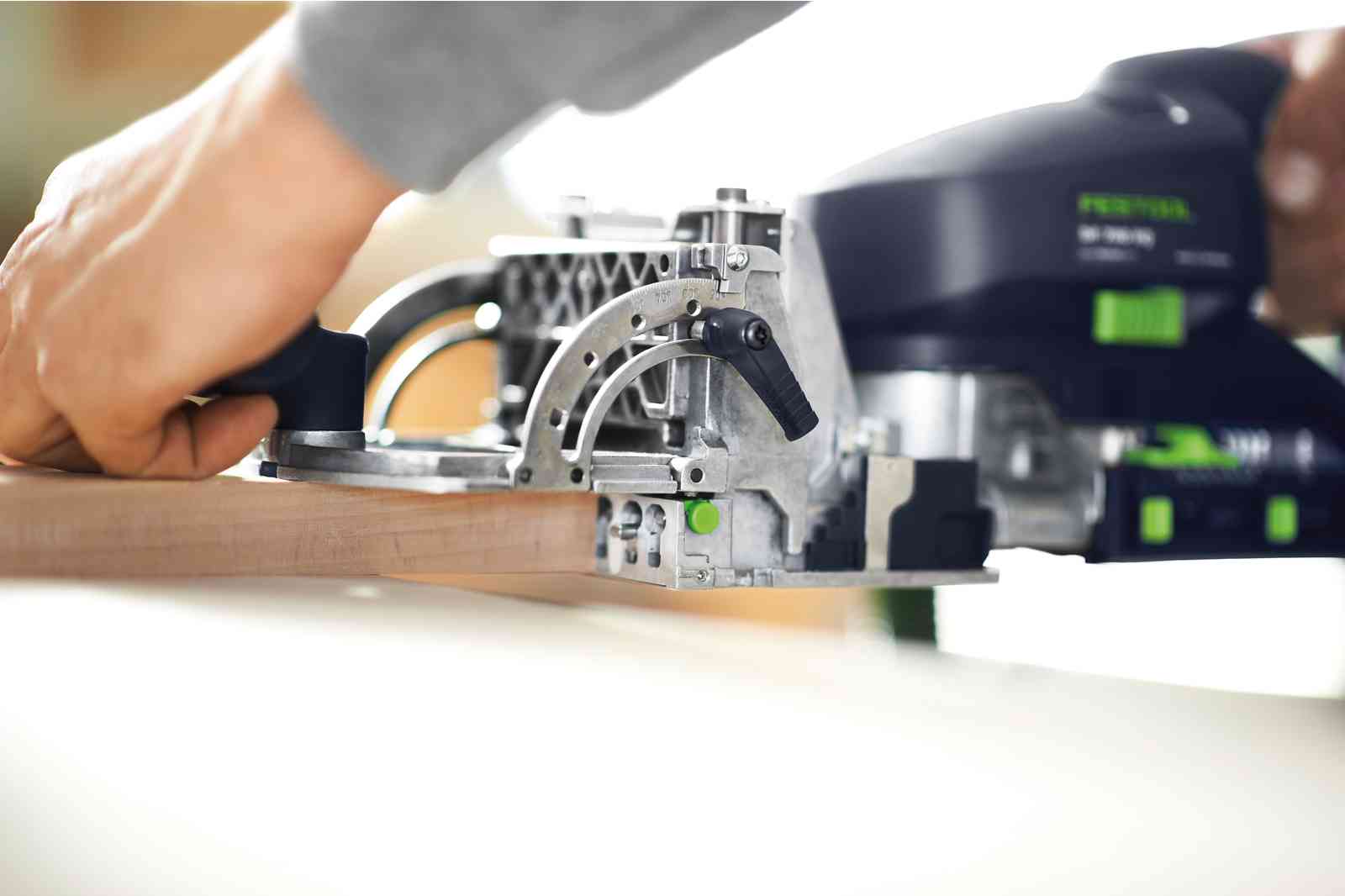

Repeat dowel adjustments without time-consuming marking: The DF 700 can be quickly and precisely positioned via the integrated impact pins right from a reference edge. This is also possible for dowel groups.
The special shape of the DOMINO in combination with expanding glue pockets and lateral longitudinal grooves gives the dowels a secure grip. You can use the DOMINO XL DF 700 joining machine to effortlessly process dowels up to a dowel size of 14 x 140 mm. Also available as individually adjustable rods.
With the variable routing depth setting of 15-70 mm and two freely selectable "flag" positions.

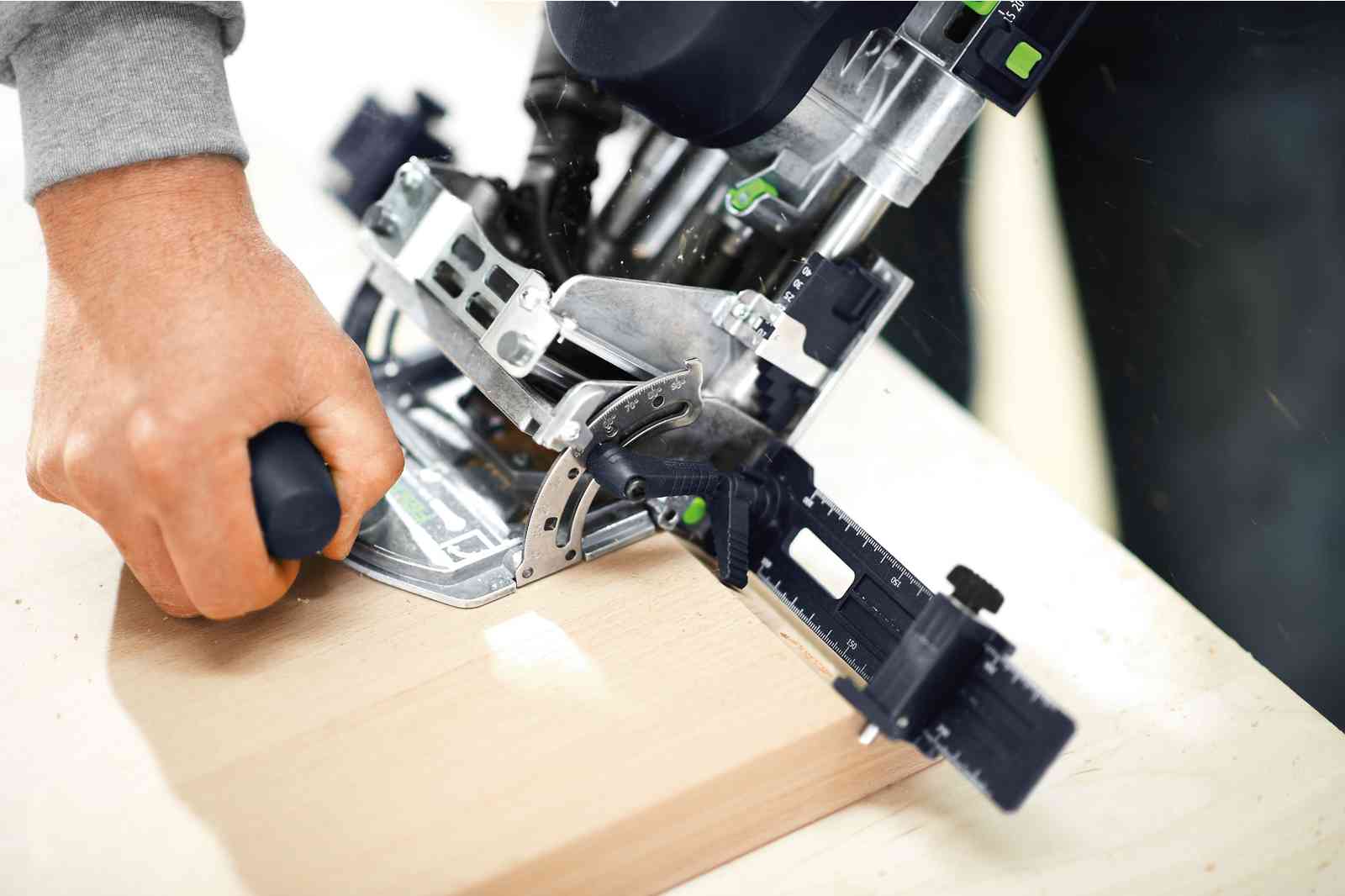

Time-saving and precise adjustment of the routing height and angle: For precise mitre routing and processing various material thicknesses. Using presettings or infinite routing angle adjustment.
Right from the first DOMINO the joints are completely secured against rotation – without aligning the workpieces.
DOMINOs are available in two materials: Beech for interior applications and weatherproof, insect- and mould-resistant sipo DOMINOs for outdoor applications.
All DOMINOs originate from sustainable forest management and other controlled sources. They bear the Forest Stewardship Council™ (FSC™) seal, which means that all stages along the supply chain are FSC-certified.
Larger quantities of chips are created when working with the DOMINO DF 500 jointers. To improve chip removal out of the routed hole during routing, as well as to protect your health, we recommend always working with a dust extraction system.
Accurate joining of round and square timbers, as well as for repeat hole spacing too: Compatible as a system accessory for the DOMINO XL and DOMINO DF 500.

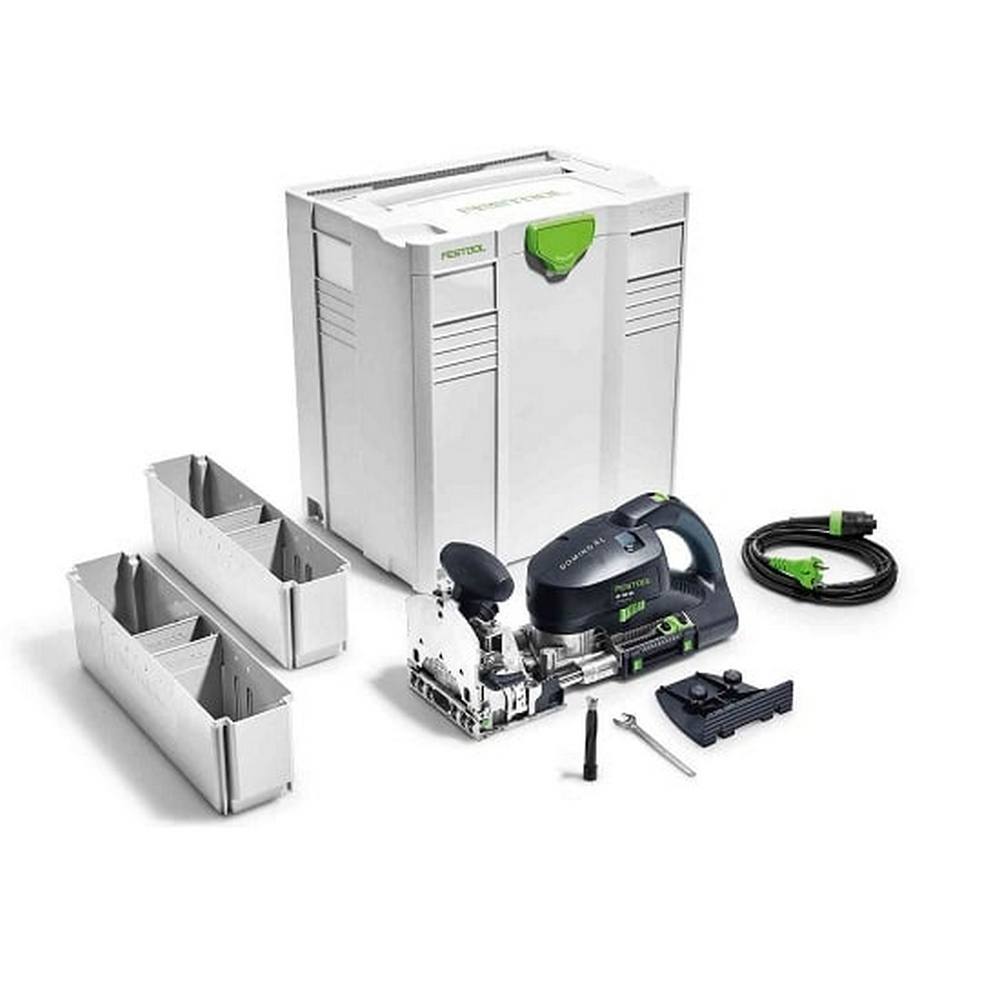

DOMINO cutter D 12, Additional stop, empty dowel box, open ended spanner, WAF 12, plug it-power cable (4 m), Systainer SYS3 M 437
| Product weight without accessories | 5.50 kg |
|---|---|
| Drive type | Mains |
| Transport weight incl. accessories | 10.2 kg |
| Power consumption | 720 W |
| Idle engine speed | 21000 min⁻¹ |
| Depth stop for routing depth | 15 - 70 mm |
| Max. routing depth | 70.00 mm |
| DOMINO groove cutter diameter | 8, 10, 12, 14 mm |
| Routing height adjustment | 10 - 50 mm |
| Mitre routing | 0 - 90 ° |
| Dust extraction connection diameter | 27 mm |
| Cable length | 4.00 m |
| Routing: Total vibration average, Ah | 2.50 m/s² |
| Routing: Standards series EN | 60745-2-19 |
| Routing: Uncertainty (noise) K | 3.00 dB |
| Routing: Uncertainty (vibration) K | 1.50 m/s² |
| Routing: A-weighted sound pressure level, LpA | 83.00 dB(A) |
| Routing: A-weighted sound power level, LWA | 94.00 dB(A) |
