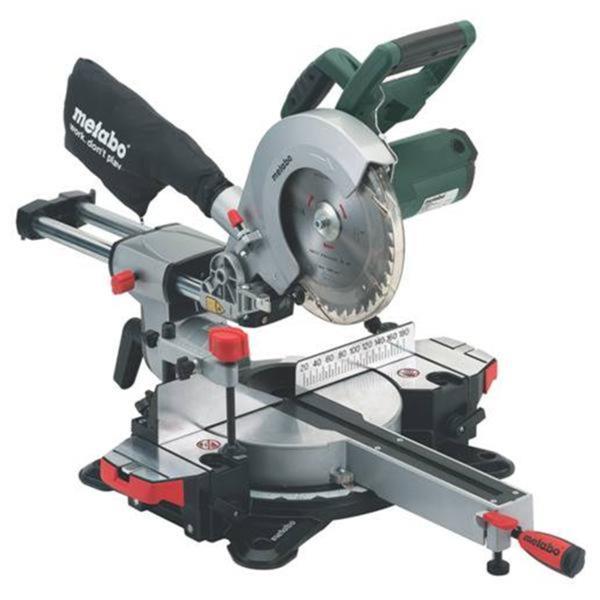

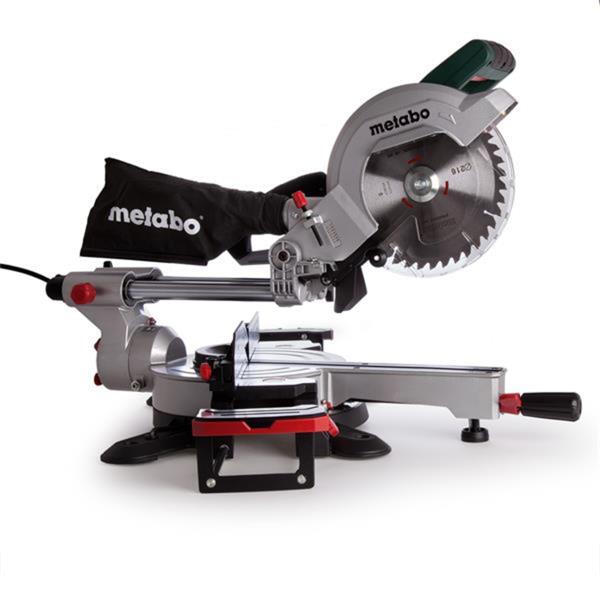

Metabo Kgs-216Mn 216Mm Sliding Mitre Saw 240V

Metabo KGS-216M 216mm Sliding Mitre Saw 110V and 220V

The new Metabo M class mitre saws for cross cuts / mitre cuts in wood. With new and improved design features including much better dust extraction, better handles for transport, more compact and lightweight, integrated table extensions (detachable for better material support), better precision and durability.

FEATURES:

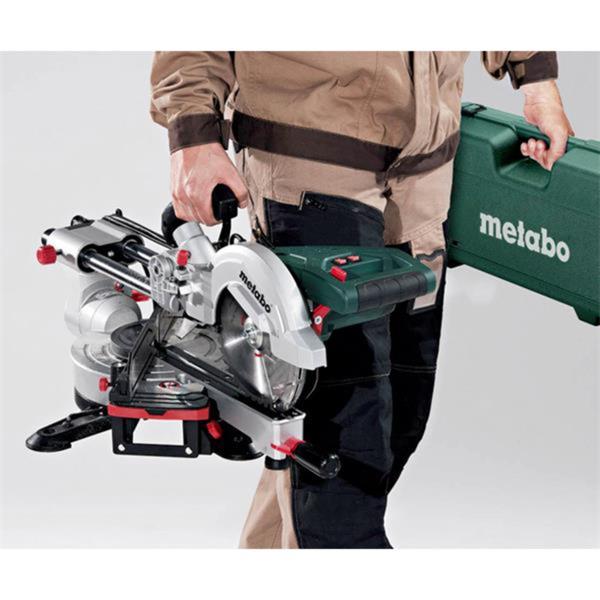

• Compact light weight, suitable also for one-handed transport
• Sliding function for wide work pieces.
• Easy transport thanks to ergonomically-designed handles and saw head lock
• Robust die-cast aluminium design for highest demands
• Effective dust extraction via integrated dust scoop.
• Fast and precise setting of common angles using stop points
• Laser for exact display of the cutting line (mains powered, no batteries required)
• Infinitely extendible table width extension, removable to put long panels, slabs etc. underneath
• Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
• High sliding rear fence profiles for safe sawing
• Material clamp for secure fixing of the work piece from the top or front
• Depth stop for easy creation of grooves
• Saw head can be inclined to the left, with additional angle range for undercuts
• All scales and operating elements are visible from the working position and can be operated intuitively
• Easy saw blade change by means of spindle lock: No dismantling of the pendulum protective cover required

SPECIFICATION:

Dimensions L x W x H – 760 x 475 x 340mm
Maximum cutting width 90°/45° – 305mm/205mm
Maximum cutting depth 90°/45° – 65mm/36mm
Maximum cross section of the work piece:
-Straight cut 90°/90° – 305 x 65mm
-Double Mitre 45°/45° – 205 x 36mm
Turntable setting left/right – 47°/47°
Saw blade tilt left/right – 47°/2°
Saw blade – Ø 216 x 30mm
Rated input power S1 100% – 1200W
Rated input power S6 20% – 1500W
Idle revolution – 5,000 /min
Revolutions at rated load – 3,750 /min
Weight 13.5kg
Cable length – 2m

INCLUDES:

Carbide Saw (40 teeth)
2 Table length extensions
Length guide
Material clamp
Tool for saw blade change
Cable winder
Chip collection bags
