TREND CRT/MK3 Craftpro Router Table MK3 – 240V

Trend CRT/MK3 Craftpro Router Table MK3 – 240V

The Trend Craftsman Router Table MK3 240V – CRT/MK3 is ideal for craftsmen and woodworking enthusiasts, it is packed with the necessary features to maximise the versatility of all popular portable routers. It has a large laminated MDF table to help keep the work area clean and tidy and to make sure there is plenty of space to get the job done.

FEATURES:

• Large laminated MDF table
• Quick release aluminium extrusion back fence with MDF cheeks
• Removable 6.35mm thick aluminium insert plate with 98mm diameter aperture, pre-drilled for Trend TBC routers and T11 routers

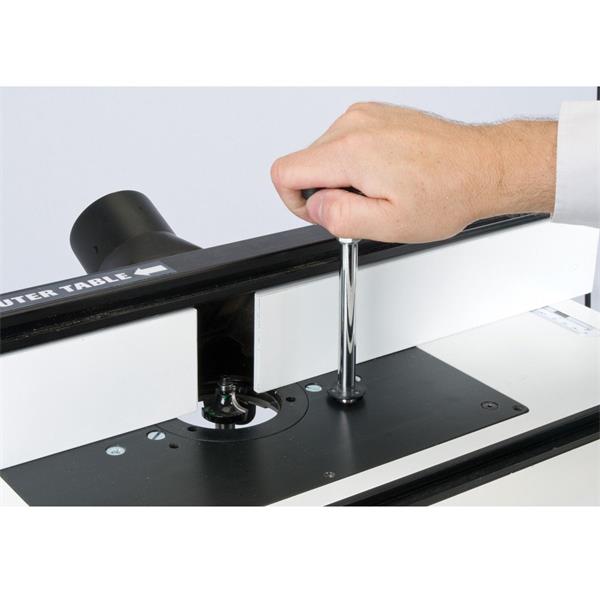

• Quick raiser and quick release facility for the T11 router

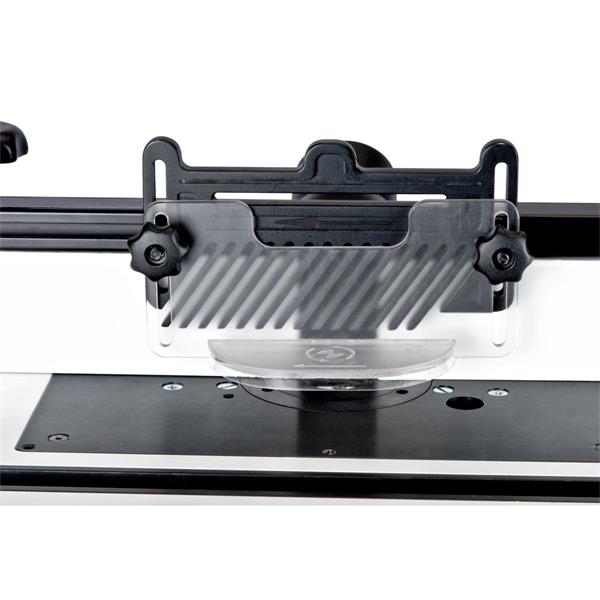

• High back fence with fully adjustable guard assembly
• Fully adjustable side finger pressure
• Full perimeter leg stand with adjustable feet
• Two insert rings 31.8mm and 67.5mm diameter to reduce table aperture
• Lead on pin for bearing guided curved work
• Edge planing facility on back fence of 1.4mm and 2.4mm
• Cable management clips
• No volt release switch

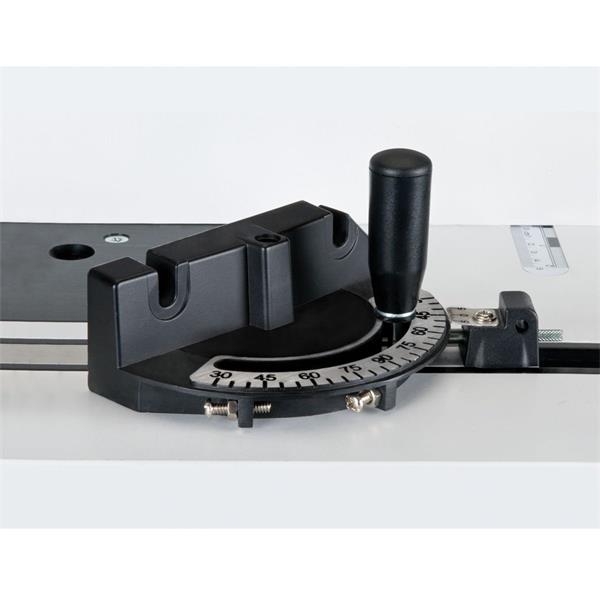

• Mitre fence with zeroing and spelch block facility
• Bench fixing brackets

SPECIFICATION:

• Table Top Size – 610 x 405 x 26mm
• Bench Height – 410mm
• Router Cutter Aperture – 98mm
• Max Cutter Diameter – 86mm
• Insert Ring Sizes – 31.8mm, 67.5mm
• Back Fence height – 68mm
• Dust Spout Aperture: 57mm
• Edge Planing up to – 1.4 and 2.4mm
• Weight – 13.6Kg
• Voltage – 240V

INCLUDES:

• 1 x Router Table
• 2 x Insert Rings
• 1 x No-Volt Release Switch
• 1 x Side Pressure
• 1 x Top Pressure
• 1 x Mitre Fence
• 1 x Lead-On Pin
• 1 x Safety Guard
• 1 x Pushstick
